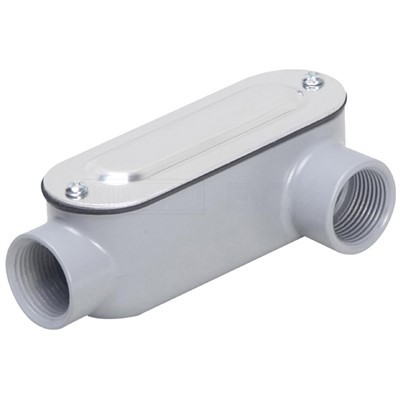

Electrical Metallic Tubing (EMT) Set Screw Conduit Body Type LL
Product Overview
◆ Application Type: EMT – Electrical Metallic Tubing
◆ Material: Aluminum
◆ Finish: Powder Coated
◆ Trade Size: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" and 4"
◆ UL File Number: E483162
◆ Cover and gasket included
Product Details
LL style EMT conduit body is attached to Electrical Metallic Tubing when changing the direction of a run to left is required. The set screw conduit body allows access to the interior of a thin-wall (EMT) steel conduit system for inspection, maintenance, splicing and pulling. EVT EMT LL conduit bodies save time and money by eliminating costly bending of large conduits. They ensure a weatherproof installation for both indoor and outdoor, due to the powder-coated finish and gasket
Reference and Packing
EVT# | Trade Size | Packing QTY |
ELL01 | 1/2" | 100 |
ELL02 | 3/4" | 50 |
ELL03 | 1" | 50 |
ELL04 | 1-1/4" | 20 |
ELL05 | 1-1/2" | 20 |
ELL06 | 2" | 10 |
ELL07 | 2-1/2" | 1 |
ELL08 | 3" | 1 |
ELL10 | 4" | 1 |
