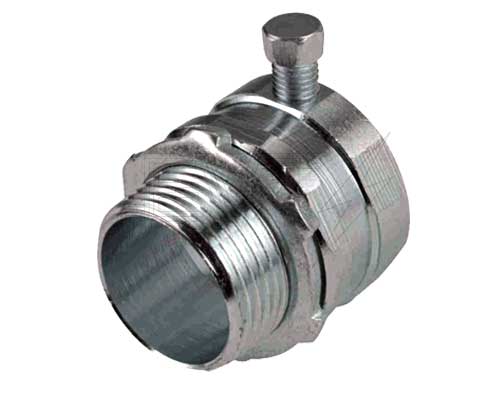

Rigid Set Screw Connector
Product Overview
◆ Application Type: RMC – Rigid Metal Conduit / IMC – Intermediate Metal Conduit
◆ Material: Steel
◆ Finish: Galvanized
◆ Trade Size: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" and 4"
◆ UL File Number: NIL
Product Details
EVT rigid set screw connector is used to bond unthreaded rigid conduit or IMC to an electrical steel box or enclosure, eliminating the need to thread bald conduits after cutting. The conduit connector or IMC connector provides a concrete-tight connection when it is taped.
The rigid threadless connector is zinc plated for corrosion protection. This set screw rigid connector threadless is for use in dry location only.
Rigid conduit connector is available in full sizes up to 4". Sizes from 2-1/2" to 4" can be also used for EMT.
Reference and Packing
EVT# | Trade Size | Packing QTY |
RSC01 | 1/2" | 500 |
RSC02 | 3/4" | 250 |
RSC03 | 1" | 250 |
RSC04 | 1-1/4" | 100 |
RSC05 | 1-1/2" | 100 |
RSC06 | 2" | 50 |
637S | 2-1/2" | 12 |
638S | 3" | 12 |
640S | 4" | 6 |
