Tuberia EMT

Tuberia EMT, IEC 61386

Product Overview

◆ Application Type: IEC 61386 Tuberia Metalica Rigida

◆ Material: Steel

◆ Finish: Galvanized

◆ Trade Size: 16mm, 20mm, 25mm, 32mm, 40mm and 50mm

◆ Standard: IEC 61386-1 ed2.0 (2008-02), IEC 61386-21 ed1.0 (2002-02)

Product Details

Tuberia EMT is short for Electrical Metallic Tubing, which is an unthreaded metal raceway of circular cross section. Tuberia electrica EMT is manufactured according to IEC 61386-1 ed2.0 (2008-02) Requisitos generales, IEC 61386-21 ed1.0 (2002-02) Sistemas de tubos rigido and IEC 60423 (2007) dimension e hilo. EVT IEC EMT products got SEC approval by CESMEC testing.

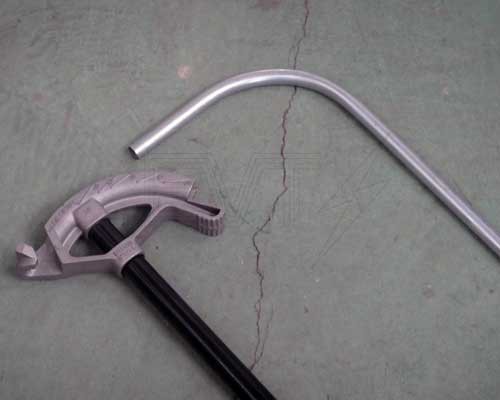

EMT is the type of metallic non-flexible conduit. EMT is thin-walled, it cannot be threaded, often used with fittings by screw connection. Even though EMT is the thinnest-walled of the tuberia metalica rigida, it still provides ample protection in most applications except where serious damage is anticipated, and its light weight makes it easy to handle and bend. Tuberia EMT is primarily used in commercial or industrial applications.

Tuberia metalica rigida EMT is available in trade sizes 16mm through 50mm. The tuberia metalica rigida is galvanized both inside and outside for corrosion protection. Most important of all, we should inspect the outside diameter based on the range as below:

16mm steel conduit: 15.7mm-16.0mm

20mm steel conduit: 19.7mm-20.0mm

25mm steel conduit: 24.6mm-25.0mm

32mm steel conduit: 31.6mm-32.0mm

40mm steel conduit: 39.6mm-40.0mm

50mm steel conduit: 49.5mm-50.0mm

Reference and Packing
