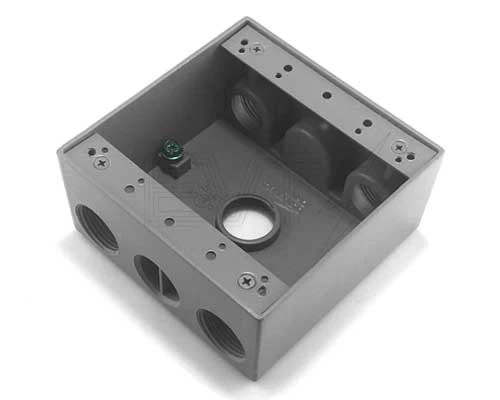

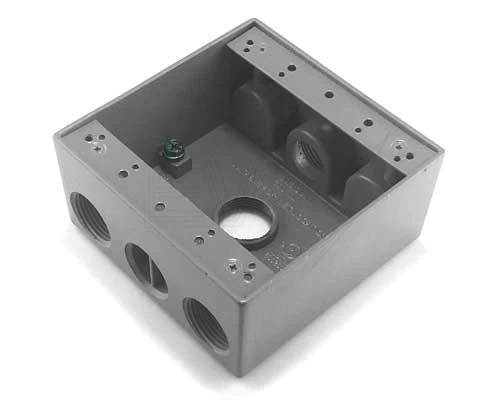

2 Gang Weatherproof Box, 2 inch deep
Product Overview
◆ Application Type: Weatherproof Box
◆ Material: Aluminum
◆ Finish: Powder Coated
◆ Trade Size: 1/2"X3, 3/4"X3, 1/2"X4, 3/4"X4, 1/2"X5, 3/4"X5, 1"X5,
1/2"X5 (Side), 3/4"X5 (Side), 1/2"X7 (Side), 3/4"X7 (Side),
1/2"X7, 3/4"X7, 1/2"X9, 3/4"X9
◆ UL File Number: E483162
Product Details
EVT 2 gang weatherproof box is used as a weatherproof junction box. This 2 gang outdoor box can be also used as housing for receptacles, switches and GFCI's. Internal hub threads meet NEMA requirements, accepting all threaded conduits and accessories. The outdoor box is supplied with 2 closure plugs, 1 green grounding screw, 2 mounting lugs and 2 self-tapping screws.
Weatherproof box 2 gang is UL listed E483162. This 2-gang outlet weatherproof box is manufactured according to UL 514A and CSA C22.2 NO.18.1-13, Standard for Safety for Metallic Outlet Boxes.
Weatherproof box two gang is in seamless aluminum alloy construction. The two gang weatherproof box provides maximum weather ability and scratch resistance because of the excellent powder coating finish.
The double gang weatherproof box will be in grey, unless any other color is specified. This outlet box is in 2 inch deep with 30.5 cubic inch capacity. Deep outlet box in 2.625 inch deep with 37.3 cubic inch capacity is also available upon your request.
Reference and Packing
EVT# | Trade Size | Packing QTY |
TGB31 | 1/2"X3 | 40 |
TGB32 | 3/4"X3 | 40 |
TGB41 | 1/2"X4 | 40 |
TGB42 | 3/4"X4 | 40 |
TGB51 | 1/2"X5 | 40 |
TGB52 | 3/4"X5 | 40 |
TGB53 | 1"X5 | 40 |
TGB51X | 1/2"X5 (Side) | 40 |
TGB52X | 3/4"X5 (Side) | 40 |
TGB71 | 1/2"X7 | 40 |
TGB72 | 3/4"X7 | 40 |
TGB71X | 1/2"X7 (Side) | 40 |
TGB72X | 3/4"X7 (Side) | 40 |
TGB91 | 1/2"X9 | 40 |
TGB92 | 3/4"X9 | 40 |
