Conduit Reducing Bushing
Product Overview
◆ Application Type: Conduit Fittings
◆ Material: Steel
◆ Finish: Zinc Plated
◆ Trade Size: 3/4"X1/2", 1"X1/2", 1"X3/4", 1-1/4"X1/2", 1-1/4"X3/4",
1-1/4"X1", 1-1/2"X1/2", 1-1/2"X3/4", 1-1/2"X1", 1-1/2"X1-1/4",
2"X1/2", 2"X3/4", 2"X1", 2"X1-1/4", 2"X1-1/2",
◆ UL File Number: NIL
Product Details

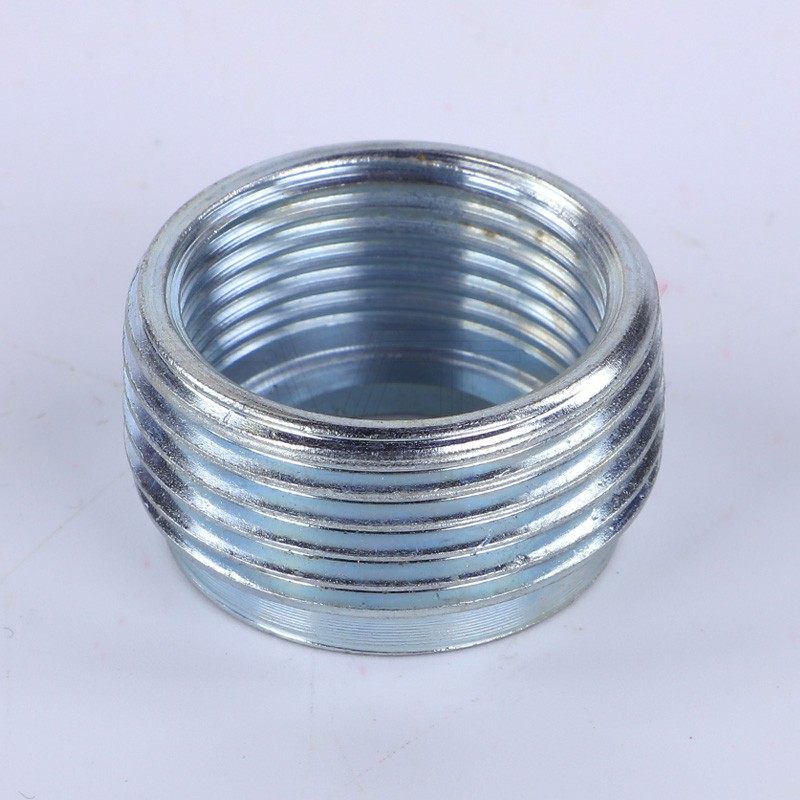

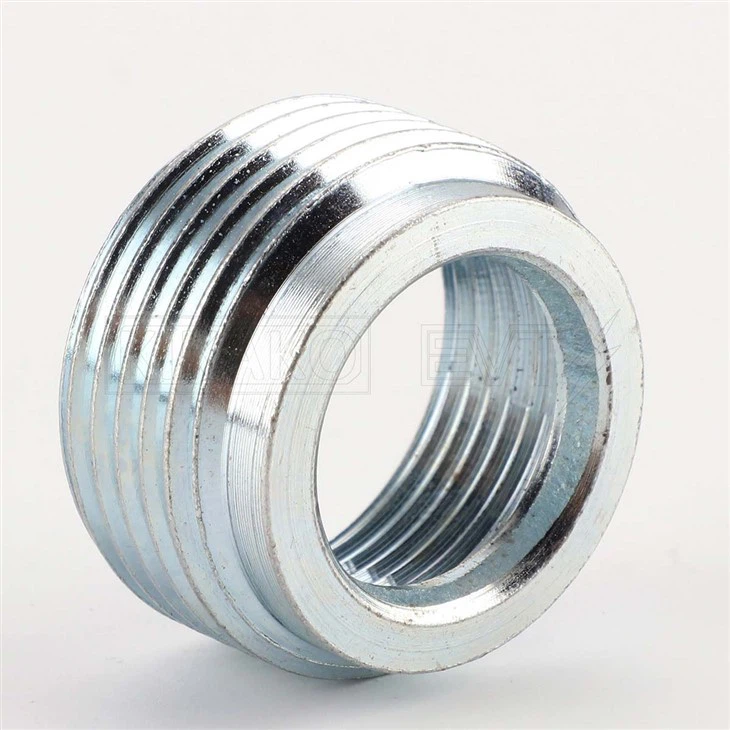

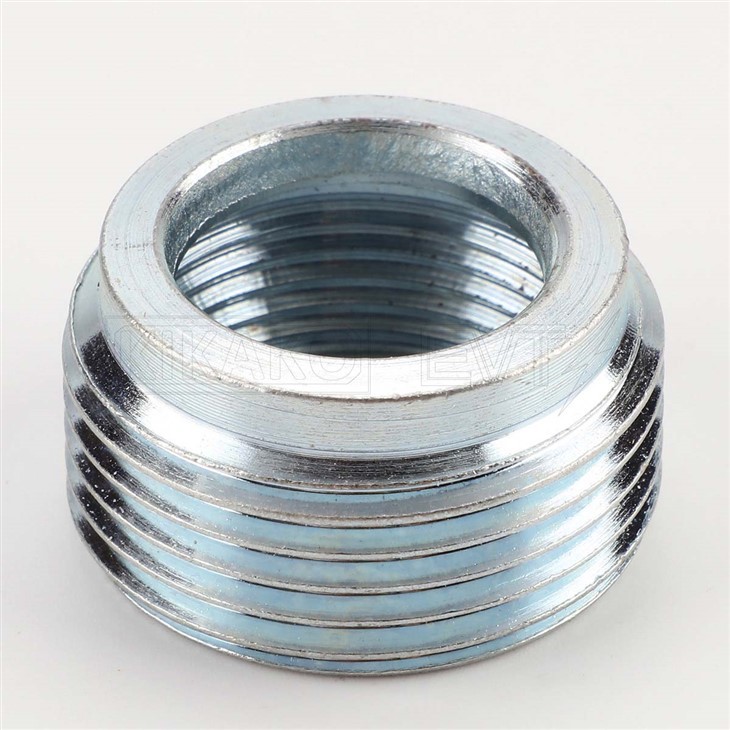

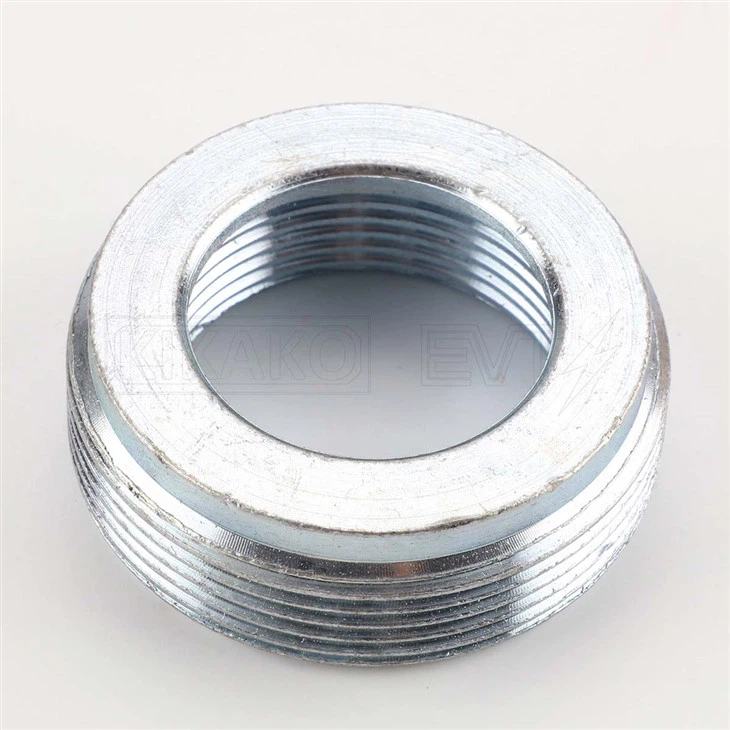

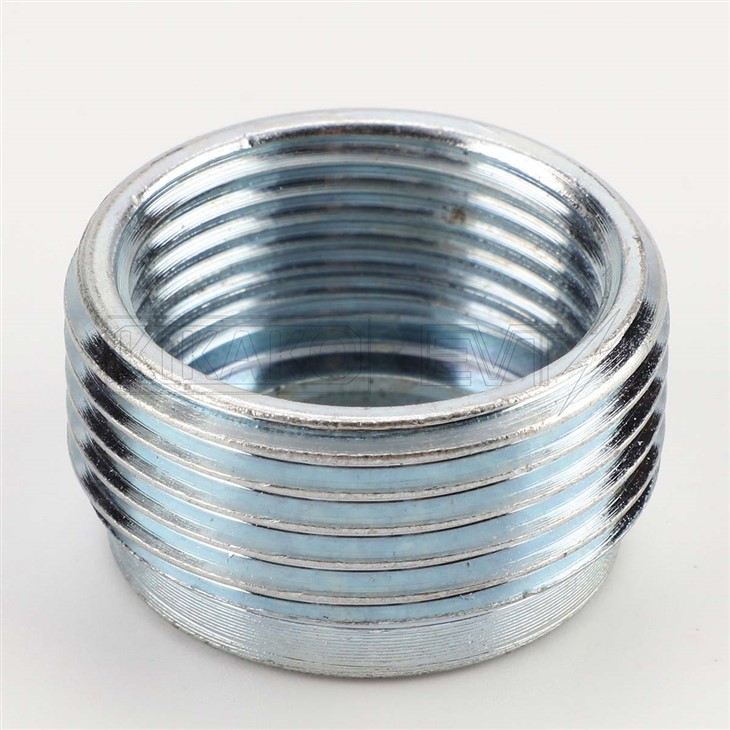

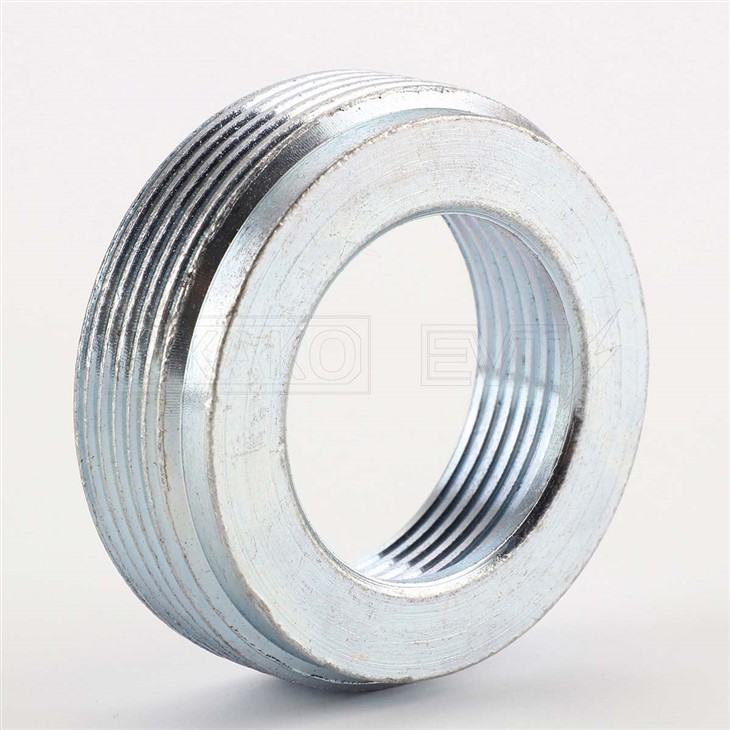

EVT conduit reducing bushing reduces the entry size of the threaded Intermediate Metal Conduit or Rigid Metal Conduit.
The rigid reducer bushing in steel construction maintains a mechanical protection. This conduit bushing is fit for indoor use only.
Conduit reducer is available in full sizes per your request.
Reference and Packing
EVT# | Trade Size | Packing QTY |
RDB01 | 3/4"X1/2" | 1000 |
RDB02 | 1"X1/2" | 500 |
RDB03 | 1"X3/4" | 500 |
RDB04 | 1-1/4"X1/2" | 210 |
RDB05 | 1-1/4"X3/4" | 210 |
RDB06 | 1-1/4"X1" | 210 |
RDB07 | 1-1/2"X1/2" | 120 |
RDB08 | 1-1/2"X3/4" | 120 |
RDB09 | 1-1/2"X1" | 120 |
RDB10 | 1-1/2"X1-1/4" | 120 |
RDB11 | 2"X1/2" | 75 |
RDB12 | 2"X3/4" | 75 |
RDB13 | 2"X1" | 75 |
RDB14 | 2"X1-1/4" | 75 |
RDB15 | 2"X1-1/2" | 75 |
