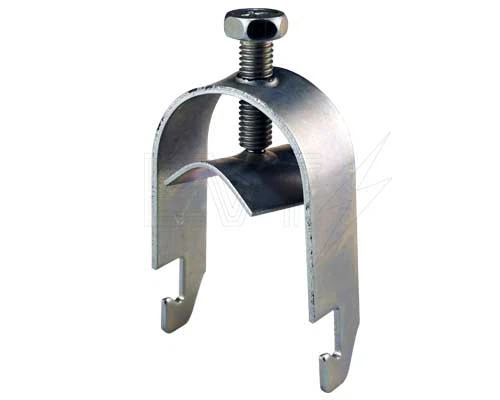

One Piece Strut Clamp
Product Overview
◆ Application Type: EMT / IMC / RMC
◆ Material: Steel
◆ Finish: Zinc Plated
◆ Trade Size: 1/2", 3/4", 1", 1-1/4", 1-1/2" and 2"
◆ UL File Number: NIL
Product Details
Assembling the loose parts of a traditional strut clamp can be frustrating. To save time of electrical installation, please choose EVT universal one-piece strut clamp.
EVT universal one-piece strut clamp is used to attach and support euqal trade sizes of EMT, IMC, rigid conduit, flexible metal conduit or cable to the open side of the strut channel. Two parallel hooks on the same side make the strut conduit clamp easy and quick to install with just one hand and keep conduits or cables square with strut channel. One-piece means no screws or bolts to drop and no need to reassemble. The wide saddle (back plate) holds securely with no damage to conduit. The universal bolt cap accepts a wide range of tools such as a wrench, screwdriver or nut driver for installation. You may also remove conduits or cables without disturbing neighboring clamps.
The universal one-piece conduit clamp is fabricated in heavy duty construction with bright zinc-plated finish for extra durability. It's punched from hot-rolled and oiled steel plates, strips or coils conforming to ASTM specifications. Strut pipe clamp is available in trade sizes 1/2" through 2".
Reference and Packing
EVT# | Trade Size | Packing QTY |
2301 | 1/2" | 300 |
2302 | 3/4" | 200 |
2303 | 1" | 150 |
2304 | 1-1/4" | 100 |
2305 | 1-1/2" | 100 |
2306 | 2" | 100 |
