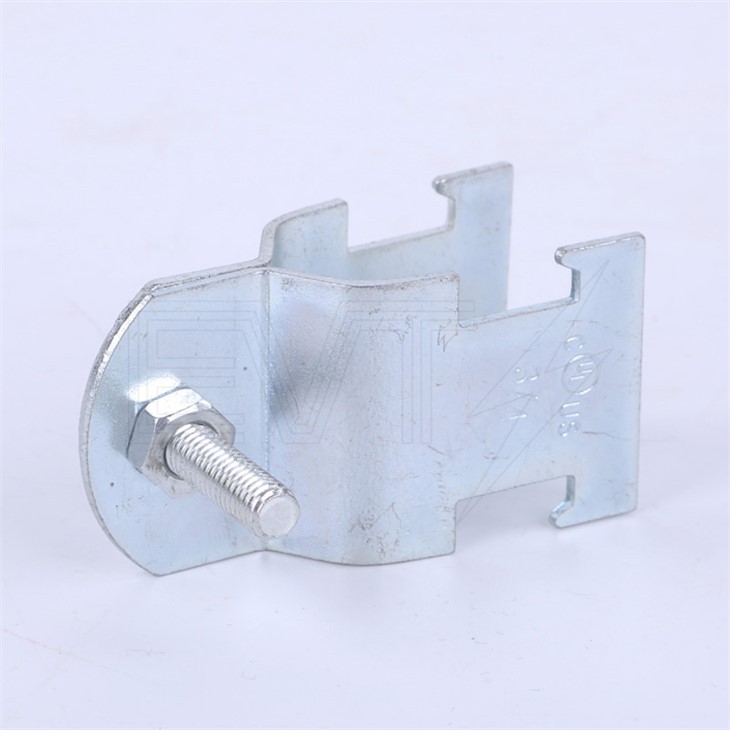

Strut Clamp
Product Overview
◆ Application Type: EMT / IMC / RMC
◆ Material: Steel
◆ Finish: Galvanized
◆ Trade Size: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 3-1/2" and 4"
◆ UL File Number: E472810
Product Details
EVT strut clamp is a universal type of conduit clamps that designed to route all EMT, IMC and rigid conduit across 1-5/8" wide strut channel. To install, slide the conduit strut clamp into the strut channel and tighten the clamping screw to secure. Bolt head is combination slot and hex head for flexibility of attachment.
The electrical conduit clamp is UL listed with UL file number E472810. EMT conduit clamp is manufactured according to UL 2239 and CSA C22.2 No. 18.4-04 – Hardware for the Support of Conduit, Tubing, and Cable.
EMT strut clamp is zinc plated that have good corrosion resistance for long term use in both dry and wet locations. Strut clamp is available in trade sizes 1/2" through 4".
Reference and Packing
EVT# | Trade Size | Packing QTY |
2101 | 1/2" | 400 |
2102 | 3/4" | 350 |
2103 | 1" | 300 |
2104 | 1-1/4" | 300 |
2105 | 1-1/2" | 250 |
2106 | 2" | 200 |
2107 | 2-1/2" | 150 |
2108 | 3" | 150 |
2109 | 3-1/2" | 100 |
2110 | 4" | 100 |
