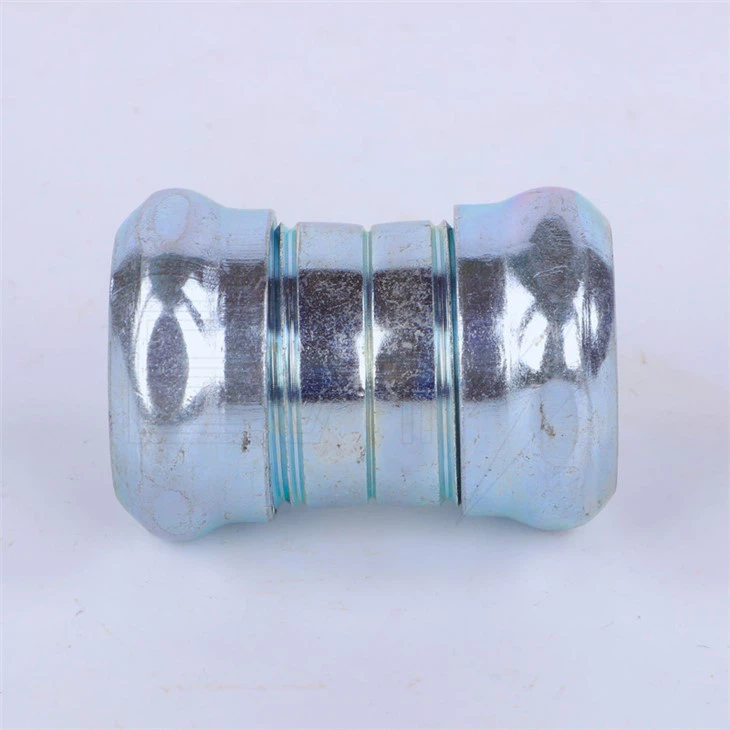

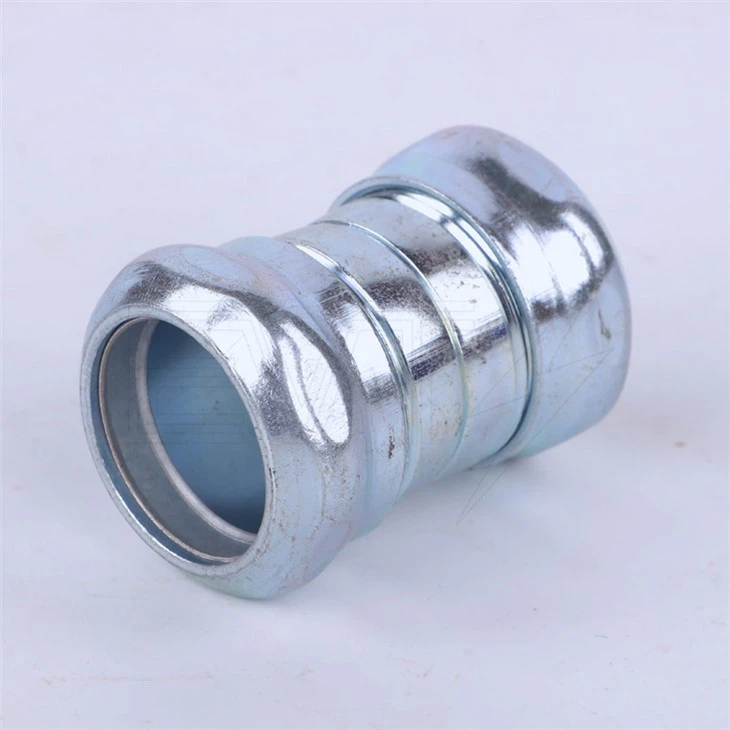

EMT Compression Coupling, Steel
Product Overview
◆ Application Type: EMT – Electrical Metallic Tubing
◆ Material: Steel
◆ Finish: Galvanized
◆ Trade Size: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" and 4"
◆ UL File Number: E343475
Product Details
EVT steel EMT compression coupling is used to connect EMT tubing sections together to achieve the desired length. EMT coupling in zinc die cast is also available.
There are two advantages for using EMT compressiong couplings.
a> Easy to install - no need to disassemble compression nuts before installation.
b> More stable - a compression end offers a more reliable hold on EMT conduit than a set-screw end
Compression type EMT coupling sizes 2-1/2" to 4" can be used for Rigid and IMC Conduits
Reference and Packing
EMT Coupling, Compression, Steel
EVT# | Trade Size | Packing QTY |
661S | 1/2" | 300 |
662S | 3/4" | 200 |
663S | 1" | 150 |
664S | 1-1/4" | 75 |
665S | 1-1/2" | 75 |
666S | 2" | 50 |
667S | 2-1/2" | 12 |
668S | 3" | 8 |
670S | 4" | 6 |
