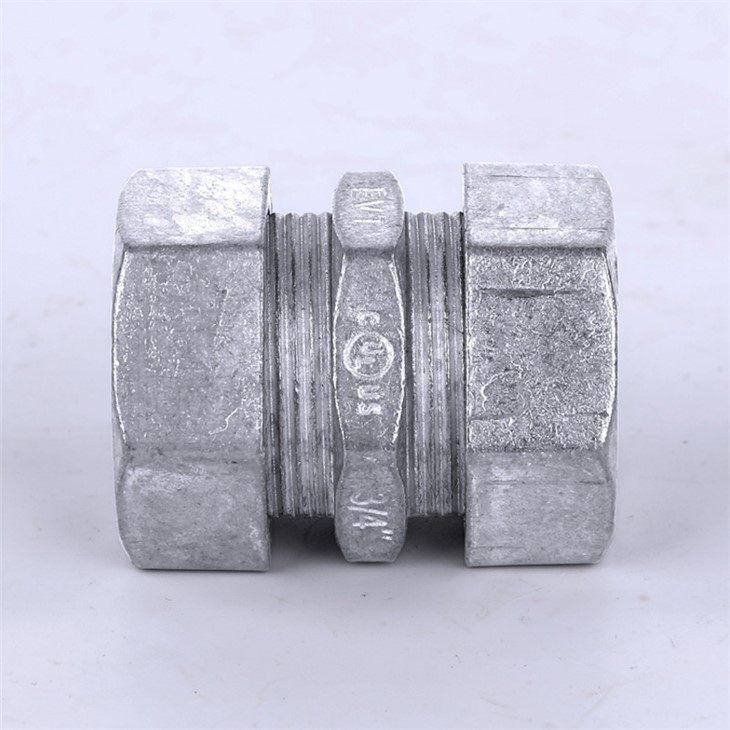

EMT Compression Coupling
Product Overview
◆ Application Type: EMT – Electrical Metallic Tubing
◆ Material: Zinc
◆ Finish: Polished
◆ Trade Size: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" and 4"
◆ UL File Number: E343475
Product Details
EMT compression fittings, connectors and couplings, are produced in according with UL 514B standard. As part of EVT EMT fittings, the EMT compression fittings are UL listed.
EMT compression coupling connects and bonds a pair of thinwall Electrical Metallic Tubing together. The compression type design promotes easy installation. Channel locks are recommended to use to tight the nuts. This EMT coupling resists corrosion with its zinc alloy construction and is ideal for indoor use. EMT couplings compression type is also available in steel.
EMT coupling from 2-1/2" to 4" also fits for Rigid and IMC Conduits
Reference and Packing
EMT Coupling, Compression, Zinc Die Cast
EVT# | Trade Size | Packing QTY |
580 | 1/2" | 500 |
581 | 3/4" | 250 |
582 | 1" | 200 |
583 | 1-1/4" | 100 |
584 | 1-1/2" | 100 |
585 | 2" | 60 |
586 | 2-1/2" | - |
587 | 3" | - |
589 | 4" | - |
