Flex Squeeze Connector, 90 Degree, Zinc Die Cast
Product Overview
◆ Application Type: Flexible Metal Conduit Fittings
◆ Material: Zinc
◆ Finish: Polished
◆ Trade Size: 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" and 4"
◆ UL File Number: E472251
Product Details

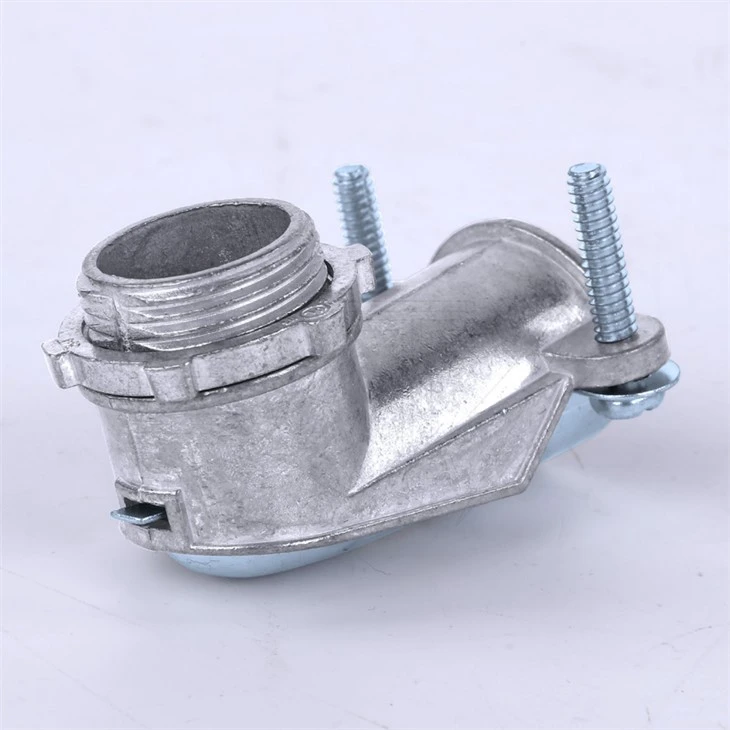

90 Degree Squeeze Connector is used to terminate FMC or various kinds of cables to a box. The squeeze type design enables easy installation.
The 90 degree squeeze type connector has UL approval with certificate number E472251. This angle squeeze connector is produced according to Standard for Conduit, Tubing, and Cable Fittings according to UL 514B and CSA C22.2 NO.18.3-12.
The angle BX connector is manufactured from zinc that is corrosion resistant. This BX cable connector in zinc ensures product integrity and longevity. We also produce straight BX connector.
Reference and Packing
EVT# | Trade Size | Packing QTY |
99 | 3/8" | 500 |
100 | 1/2" | 300 |
101 | 3/4" | 200 |
102 | 1" | 100 |
103 | 1-1/4" | 80 |
104 | 1-1/2" | 30 |
105 | 2" | 30 |
106 | 2-1/2" | 10 |
107 | 3" | 10 |
109 | 4" | 5 |
