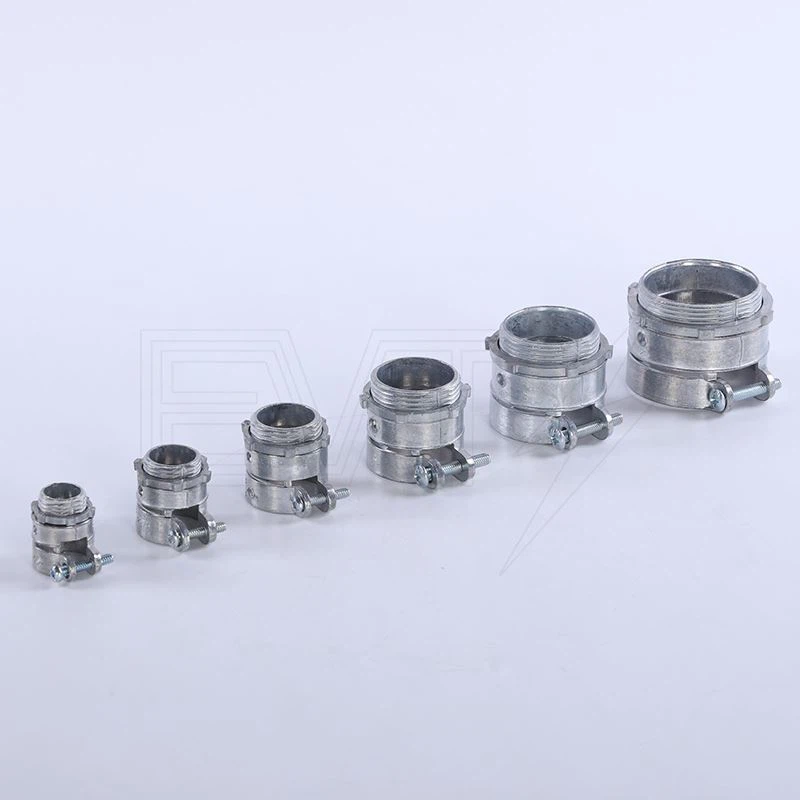

Flex Squeeze Connector, Straight, Zinc Die Cast
Product Overview
◆ Application Type: Flexible Metal Conduit Fittings
◆ Material: Zinc
◆ Finish: Polished
◆ Trade Size: 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" and 4"
◆ UL File Number: E472251
Product Details
Straight Flex Squeeze Connector is used to bond flexible metal conduit or armored cable to an outlet box or enclosure. The flex connector squeeze type is UL listed with UL file number E472251. The flexible squeeze connector is fabricated from Standard for Conduit, Tubing, and Cable Fittings according to UL 514B and CSA C22.2 NO.18.3-12.
BX flex connector is made from zinc alloy that will never get rusty. This BX connector in zinc construction ensures a mechanical protection. It is suitable for using in dry locations only.
Reference and Packing
EVT# | Trade Size | Packing QTY |
149 | 3/8" | 1000 |
150 | 1/2" | 500 |
151 | 3/4" | 250 |
152 | 1" | 200 |
153 | 1-1/4" | 200 |
154 | 1-1/2" | 100 |
155 | 2" | 100 |
156 | 2-1/2" | 25 |
157 | 3" | 20 |
159 | 4" | 10 |
