Octagon Box
Product Overview
◆ Application Type: Steel Electrical Box
◆ Material: Steel
◆ Finish: Galvanized
◆ Trade Size: 4"
◆ UL File Number: E483162
Product Details

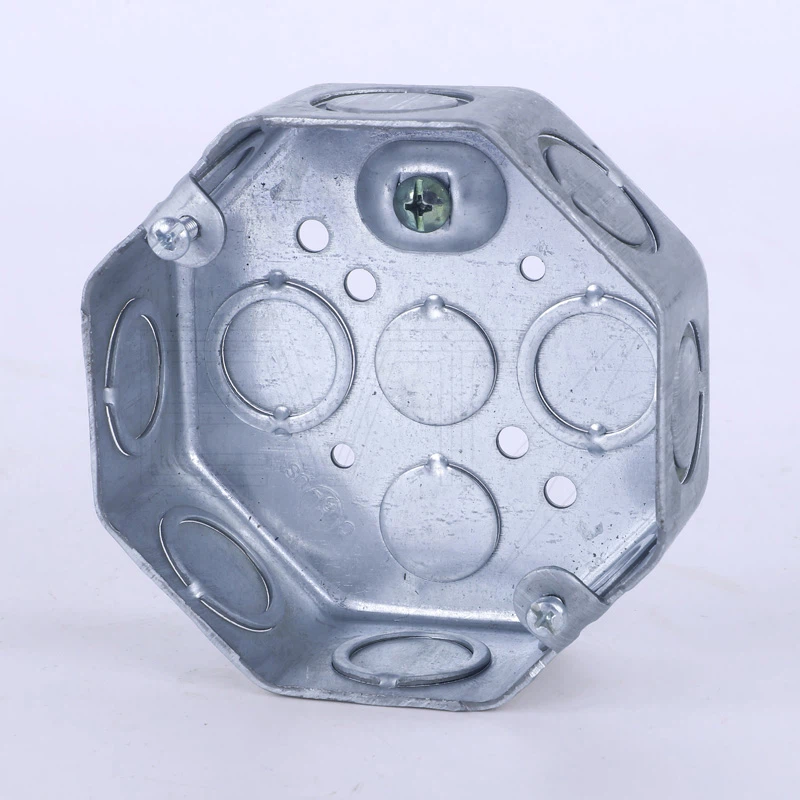

EVT 4 inch octagon box is for use with electrical conduits to install ceiling and wall lighting fixtures. The combination screw heads allow quick installation. The octagon electrical junction box is acceptable for use in 2-hour fire rated walls and ceilings.
Metal octagon electrical box is UL listed. This steel electrical box is fabricated according to Standard for Safety for Metallic Outlet Boxes UL 514A and CSA C22.2 NO.18.1-13.
The switch and outlet box 4" is in durable galvanized steel construction that prevents from rust and corrosion.
This octagon steel box is in 1-1/2" depth with 15.8cu.in capacity, 1-7/8" depth with 19.8cu.in capacity and 2-1/8" depth with 22.5cu.in capacity.

We also manufacture large octagon box with 8 sides for Costa Rica market. Please check picture as below.

Reference and Packing
EVT# | Trade Size | Packing QTY |
OB01 | 4", 1-1/2" Deep, 1/2" KO | 50 |
OB02 | 4", 1-1/2" Deep, 3/4" KO | 50 |
OB03 | 4", 1-1/2" Deep, 1/2"&3/4" KO | 50 |
OB11 | 4", 1-7/8" Deep, 1/2" KO | 50 |
OB12 | 4", 1-7/8" Deep, 3/4" KO | 50 |
OB13 | 4", 1-7/8" Deep, 1/2"&3/4" KO | 50 |
OB16 | 4", 2-1/8" Deep, 1/2" KO | 50 |
OB17 | 4", 2-1/8" Deep, 3/4" KO | 50 |
OB18 | 4", 2-1/8" Deep, 1/2"&3/4" KO | 50 |
OB19 | 4", 2-1/8" Deep, 1" KO | 50 |
