EMT Angle Connector
Product Overview
◆ Application Type: EMT – Electrical Metallic Tubing
◆ Material: Zinc
◆ Finish: Polished
◆ Trade Size: 3/4", 1" and 1-1/4"
◆ UL File Number: NIL
Product Details

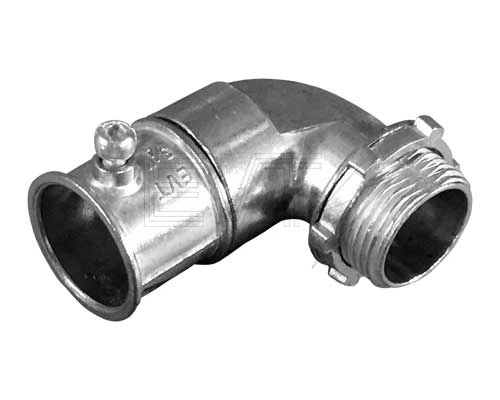

EVT 90 degree EMT connector is used indoors to bond EMT conduit to an electrical metal box or enclosure. The EMT angle connector is designed to make a 90° bend, available in set screw type and compression type.
EMT set screw connector 90 degree is available in 3/4", 1" and 1-1/4".
EMT compression connector 90 degree provides hex compression nuts for easy wrench installation and is also available in 3/4" through 1-1/4".
Reference and Packing
EMT Set Screw Connector 90 Degree
EVT# | Trade Size | Packing QTY |
90531 | 3/4" | 150 |
90532 | 1" | 100 |
90533 | 1-1/4" | 50 |
EMT Compression Connector 90 Degree
| EVT# | Trade Size | Packing QTY |
90571 | 3/4" | 150 |
90572 | 1" | 100 |
90573 | 1-1/4" | 50 |
